This is an example of the input file, which reads a trajectory written in binary MDynaMix
format stored in 10 files: dmpc16.001, dmpc16.002,...,dmpc16.010. The system presented
in the trajectory consists of 16 DMPC lipid molecules dissolved in 1600 water molecules.
The bead mapping scheme is shown on figure 2.
The resulting CG DMPC have 10 beads. In the example below each water molecule will be represented
by a single bead of ``CG water''. In order to completely remove the water and make implicit
solvent model, the line beginning with H2O: should be commented out.
&TRAJ
NFORM='MDYN',
FNAME='./MDynamix/dmpc16',
PATHDB='./',
NTYPES=2,
NAMOL='dmpc_NM','H2O',
NSPEC=16,1600,
NFBEG=1,
NFEND=10,
ISTEP=1,
IPRINT=6,
&END
BeadMapping
CGTrajectoryOutputFile:cgtraj.001
CGMolecularType:dmpc_NM.CG
ParentType: dmpc_NM
N:16:43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58
P:11:59,60,61,62,63,64,65,66,67,68,69
C1:9:1,2,3,4,5,73,74,75,76
C2:12:6,7,8,9,10,11,12,13,14,15,16,17
C3:12:18,19,20,21,22,23,24,25,26,27,28,29
C4:13:30,31,32,33,34,35,36,37,38,39,40,41,42
C5:8:70,71,72,77,78,79,80,81
C6:12:82,83,84,85,86,87,88,89,90,91,92,93
C7:12:94,95,96,97,98,99,100,101,102,103,104,105
C8:13:106,107,108,109,110,111,112,113,114,115,116,117,118
EndCGMolecularType
CGMolecularType:H2O.CG
parenttype:H2O
#comment the line below to exclude the water (make implicit solvent model)
H2O:3:1, 2, 3
endcgmoleculartype
EndBeadMapping

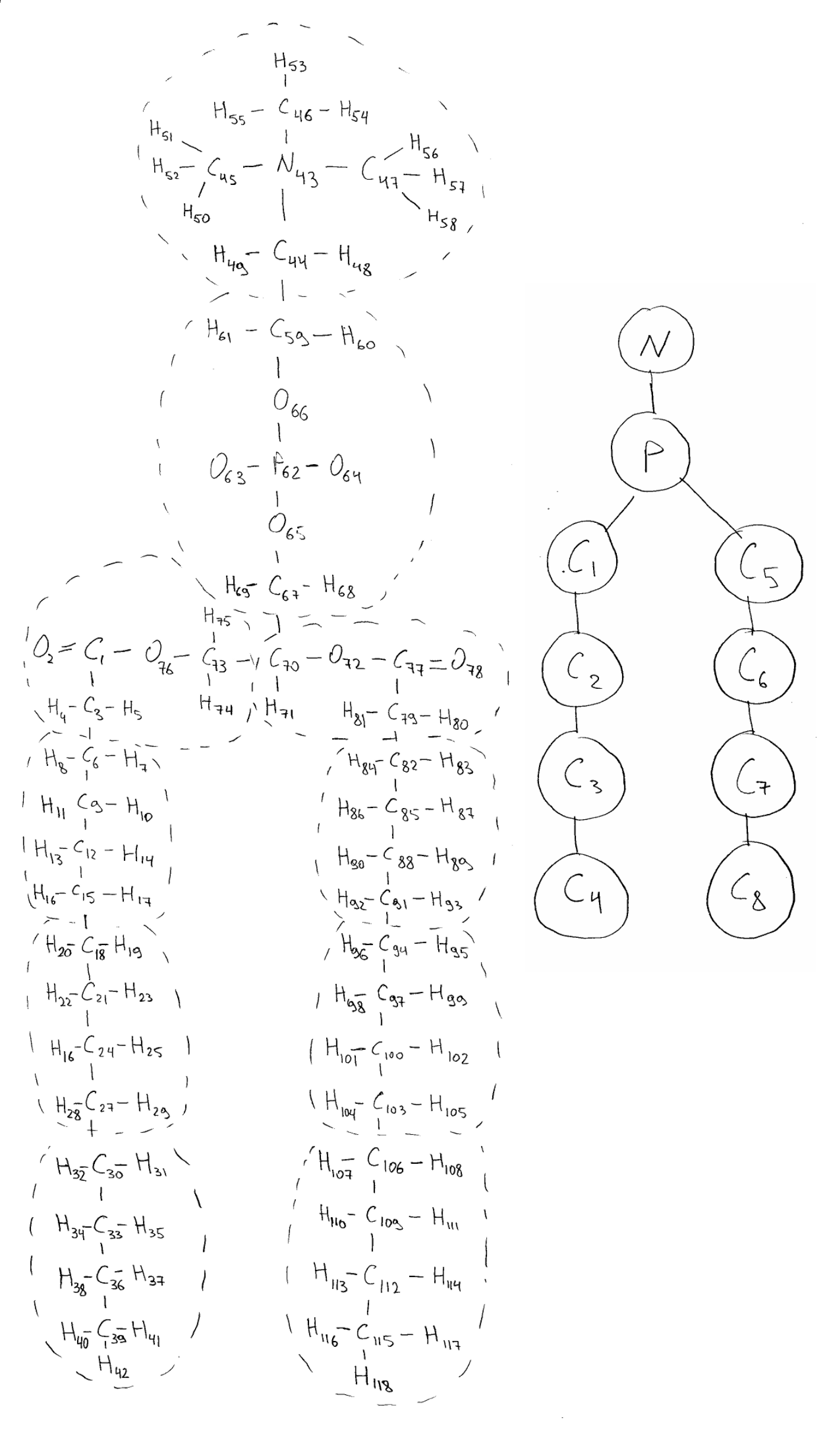

Figure 2:
Simple mapping scheme of DMPC phospholipid, which consists of 118 atoms, into 10-beads CG model. The water is mapped into a single bead.
 |
